This is an overview of our current and previous series models — tab/click for details:

MELANCHOLIA

MECA-24-A / April 5th, 2024 / COMING SOON

The TH/FX MELANCHOLIA is a hybrid monophonic desktop synthesizer with a big sound — but it is as small as a stompbox. It is based on a pulse wave modulated oscillator routed through a resonant low pass filter.

There are different ways to control the massive tonality of the MELANCHOLIA, either through light dependent resistors (LDRs) or through LED control via Vactrols (LEDs and LDRs combined). The cutoff, pitch, (oscillation) speed, modulation, and resonance pots let you control the device’s sound as you are used to with other synths.

The basic tuning (TUNING) and pulse wave modulation (PWM) pots enable you to define the sound basis of the MELANCHOLIA in detail.

The icing on the cake is the optional one shot mode and the optional use of the light dependent resistors, which let you achive a droning wah effect by controlling the amount of light hitting the LDRs.

On top, you can control the synthesizer with your sequencer by plugging it into the rear side CV and GATE jacks.

The MELANCHOLIA is a touring friendly and highly intuitive synthesizer with a massive in-your-face sound — put it in your modulation and distortion chain and you are good to go to build even higher walls of sound.

Shop link: MELANCHOLIA hybrid monophonic desktop synthesizer

ADDITIONAL MELANCHOLIA SPECS

• LxWxH 130x110x50mm
• black 1590BB enclosure
• black front plate with high quality white screen print
• rear side DC 9V center negative input
• operation only with external power supply
• no power supply included
• rear side 6.35mm audio output
• rear side 3.5mm CV and GATE input
• right side on/off switch
• one white oscillation speed and on/off LED with black aluminum bezel
• full aluminum anodized black knobs on every potentiometer
• high quality parts, like WIMA capacitors and Lumberg jacks
• built with our own TH/FX PCBs
• all electronic parts soldered by hand
• all parts RoHS compliant

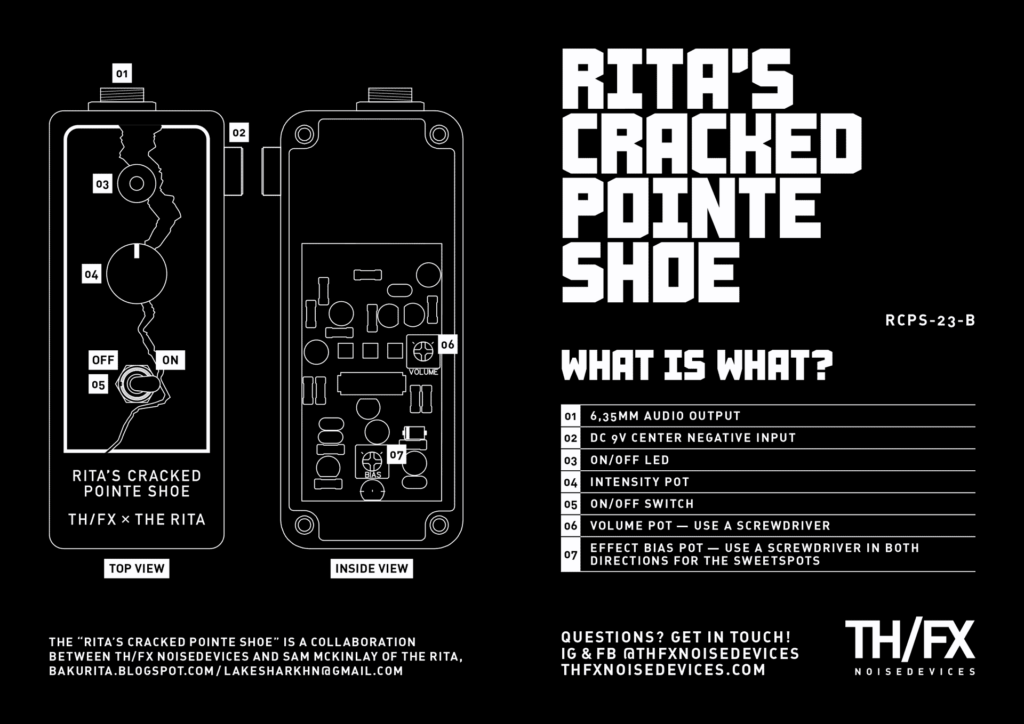

RITA’S CRACKED POINTE SHOE

RCPS-23-A / March 10th, 2023 / SOLD OUT
RCPS-23-B / June 1st, 2023 / SOLD OUT
RCPS-23-C / July 14th, 2023 / SOLD OUT
RCPS-23-D / August 18th, 2023 / SOLD OUT
RCPS-23-E / September 1st, 2023 / SOLD OUT
RCPS-23-F / September 29th, 2023 / SOLD OUT
OUT OF PRODUCTION

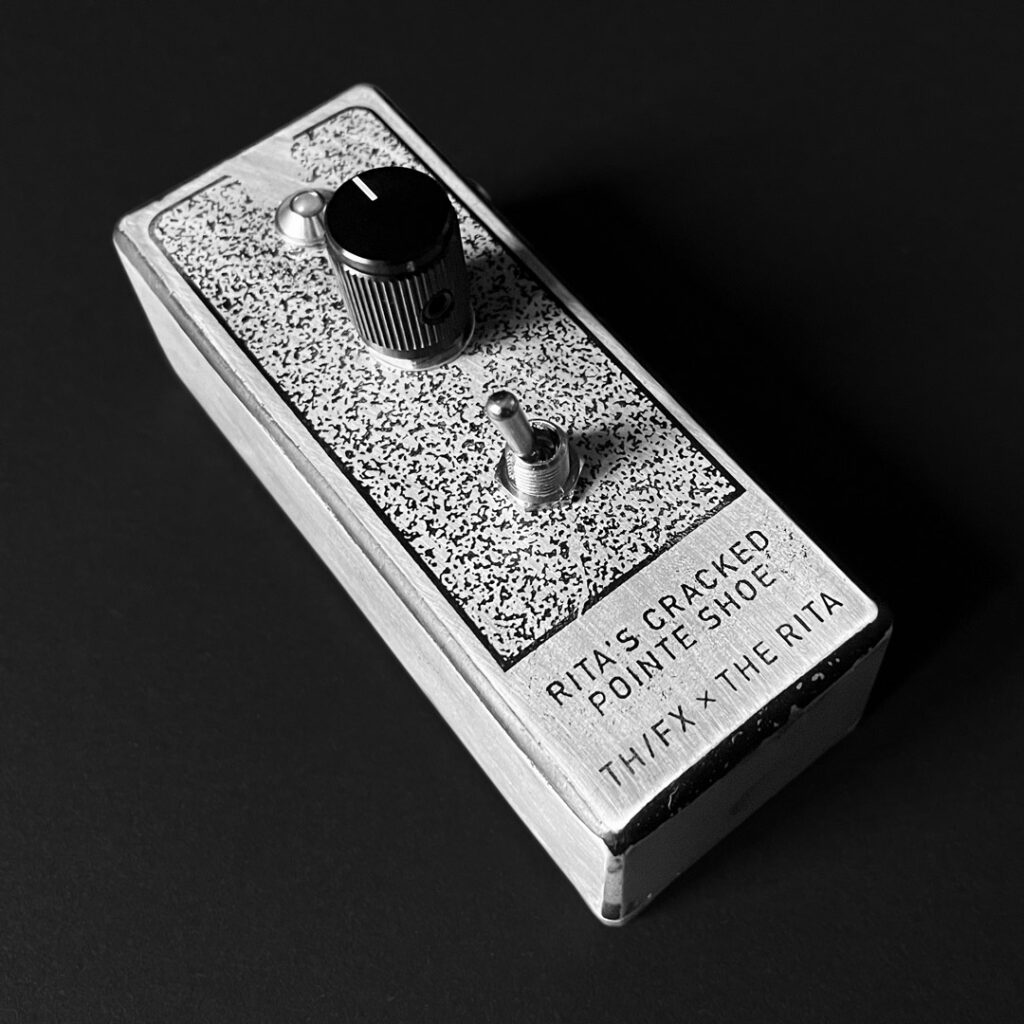

The RITA’S CRACKED POINTE SHOE is a collaboration between TH/FX NOISEDEVICES and Sam McKinlay of THE RITA.

Unlike the first version we custom built for Sam, the series model is based on a completely analog circuit and acts like a harsh Geiger counter with firecracker vibes.

It is intended to be used as a handheld device and the effect’s intensity can be controlled continously variable via a pot.

In addition, you have the ability to control the volume and the effect’s amount (bias) with two internal pots, which lets the device produce even harsher mayhem.

Use it like Sam in its raw state to create THE RITA aesthetic, or send it adjusted through your effects chain to build some ominous walls of sound.

ADDITIONAL RITA’S CRACKED POINTE SHOE SPECS

• etched 1590A enclosure, LxWxH 90x37x30mm
• right side 9V DC input
• rear side 6,35mm audio output
• operation only with external power supply unit
• no external power supply unit included
• white on/off LED with black aluminum bezel
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized black knob on the pot
• built with our own TH/FX PCB
• all electronic parts soldered by hand
• all parts RoHS compliant

HARSH ANTI

HAAN-22-A / Sept. 9th, 2022 / SOLD OUT
HAAN-22-B / Dec. 3rd, 2022 / SOLD OUT
HAAN-23-A / June 12th, 2023 / SOLD OUT

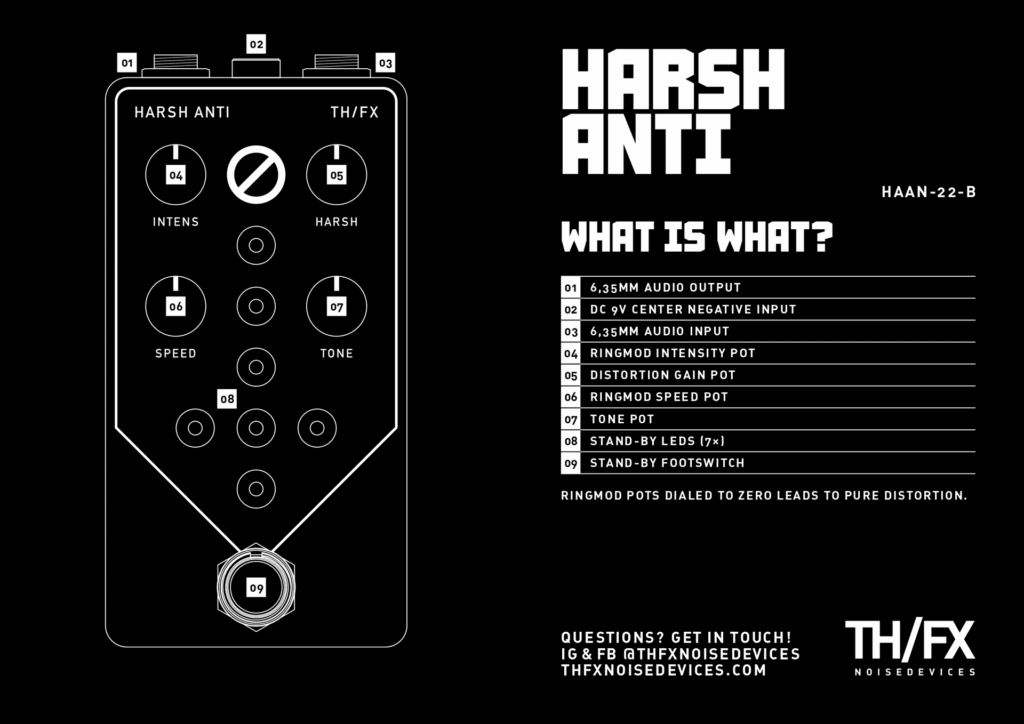

The TH/FX HARSH ANTI is a device for all kinds of electric sound generating instruments. It is a wide range ringmod distortion which goes from »void« to »harsh« with just the turn of a knob. Dialing the ringmod pots to zero leads to pure distortion. But not only the HARSH ANTI’s sound is harsh. The seven LEDs also combine to create a super bright red spot.

100% handmade, best metal parts, no cheap plastics, unique design, etched enclosure.

Cables and power supply are not included.

Shop link: HARSH ANTI Ringmod Distortion

ADDITIONAL HARSH ANTI SPECS

• etched 125B enclosure, LxWxH 120x65x39mm
• rear side 9V DC and 6,35mm audio connections
• operation only with external power supply unit
• no external power supply unit included
• seven red on/off LEDs with aluminum bezels
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized knobs on every pot
• built with our own TH/FX PCBs
• all electronic parts soldered by hand
• all parts RoHS compliant

BAIKAL

BKLD-22-A / April 1st, 2022 / SOLD OUT
BKLD-22-B / April 17th, 2022 / SOLD OUT
BKLD-23-A / November 8th, 2023 / MADE TO ORDER

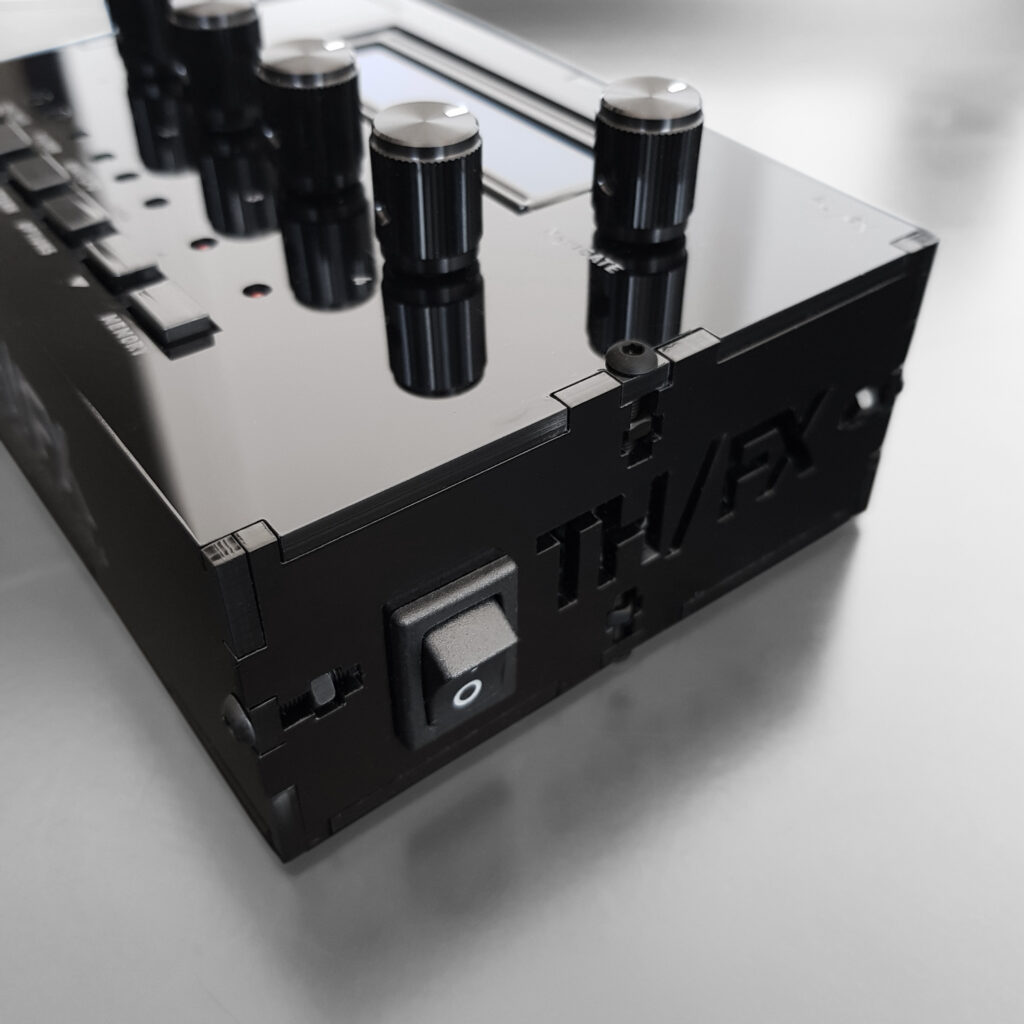

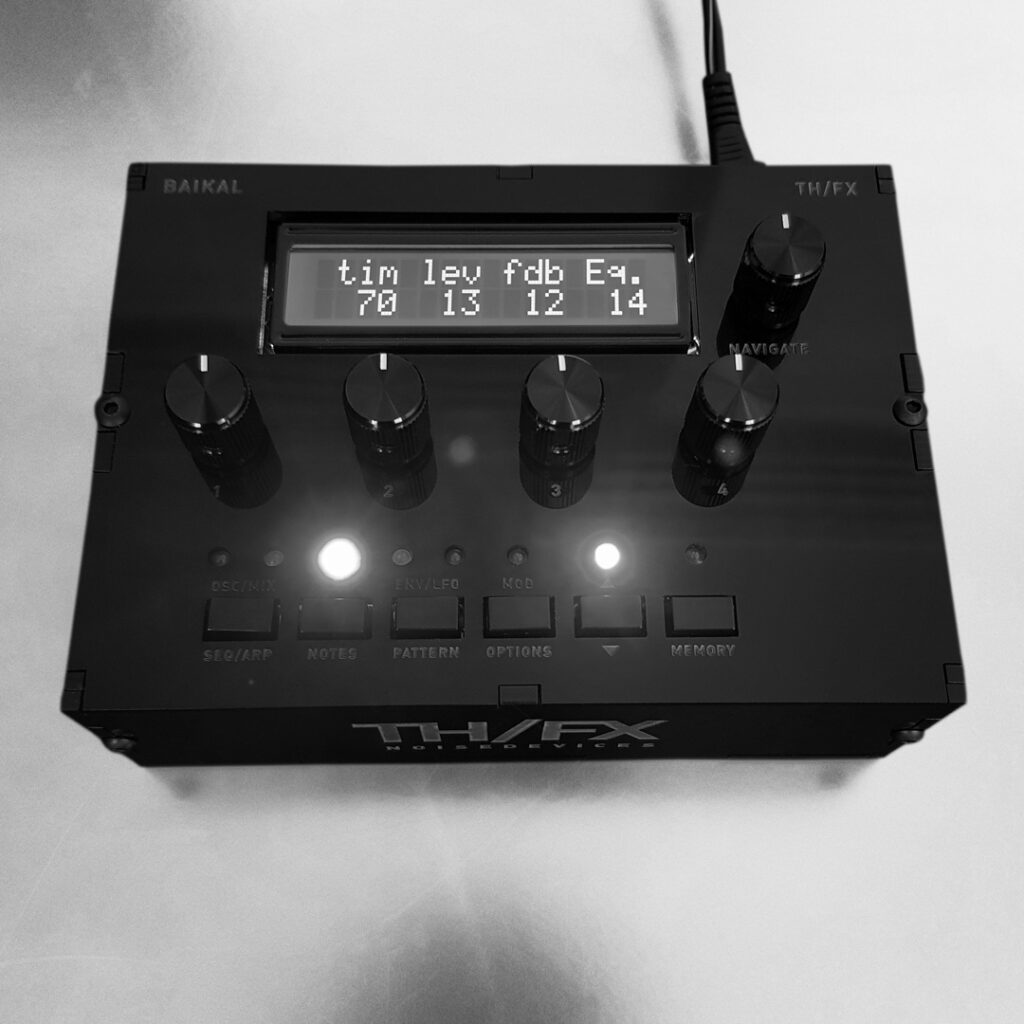

The TH/FX BAIKAL is a hybrid monophonic desktop synthesizer that offers the best of both analog and digital worlds.

It is designed in two halves — the main circuit board is all digital, generating various sound sources, mixing and treatment options, envelopes, LFOs, and a 16-step sequencer and arpeggiator. It is equipped with an 16-line by 2-character LCD display, an encoder pot to navigate through parameters/pages shown on the display, four pots to modify the synthesis parameters, and six push buttons to cycle between groups of related pages, to switch between the synthesis pages and the sequencer/system pages, and to load and recall presets.

The all analog LP2 filter plus delay board forms the second half of the BAIKAL. It combines a raw OTA-C 2-pole filter with a classic lo-fi delay. It contains the voltage-controlled filter and amplifier, and has the ability to treat external audio.

The two digital oscillators are playable over a 11-octave range with a wide variety of waveforms, each with variable waveshaping parameters. You get basic square, sawtooth, pulse, triangle and filtered noise, a set of eight wavetables and trans-waves ranging from slap bass and bowed cello, through digital PPG-style sounds to tone-bar organs and male voice. In addition, you have a user wavetable option, so you can download your own creations via MIDI SysEx dump.

The BAIKAL is really compact (LxWxH 96x133x44mm), fits neatly on a desktop, can be powered by a 9V adaptor, features standard MIDI I/O and 6,35mm audio I/O sockets, and it can store many presets. Its innards are easy to navigate via a simple-yet-effective user interface consisting of the rotary encoder, the four rotary controls whose functions are linked to the four parameters currently displayed on the LCD display, and the yet described set of six push buttons with associated LED readouts to let you move between the various menus.

Power supply is not included.

Shop link: BAIKAL Hybrid Desktop Synthesizer

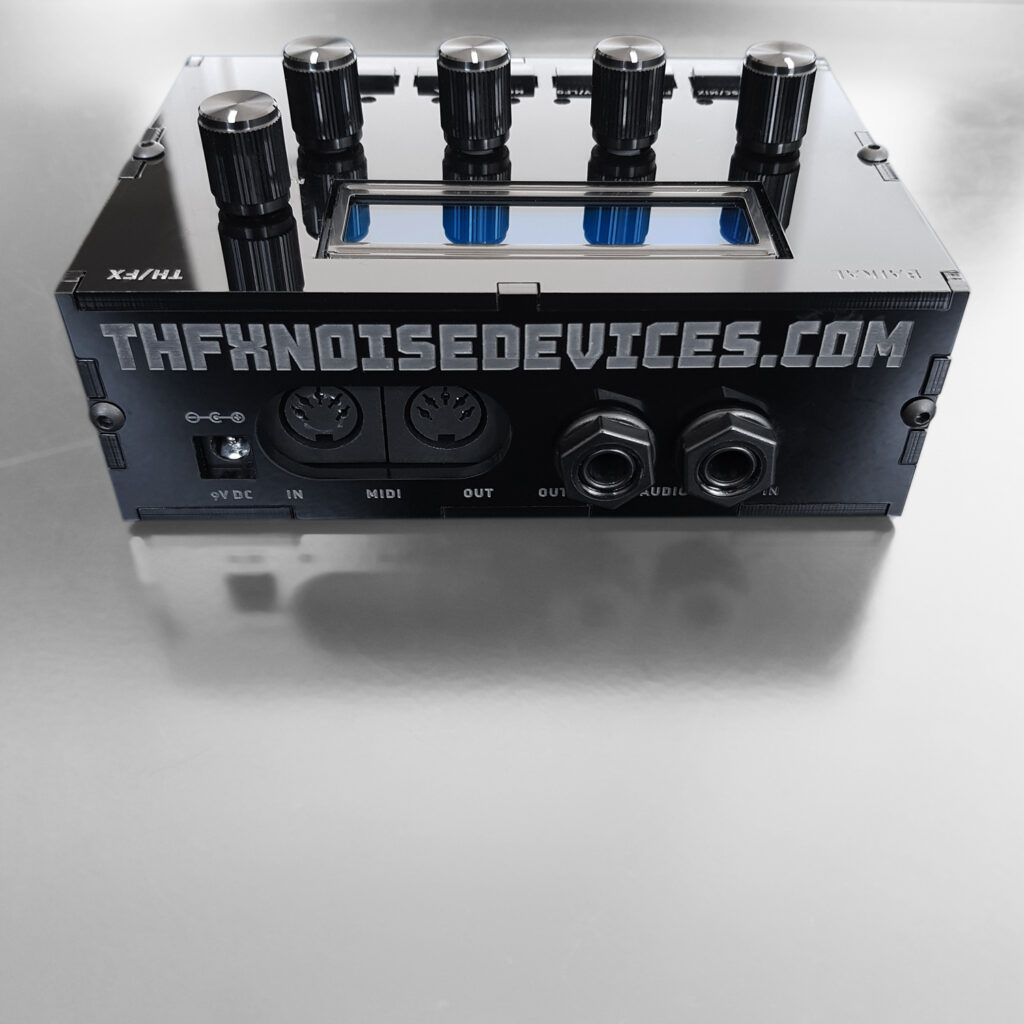

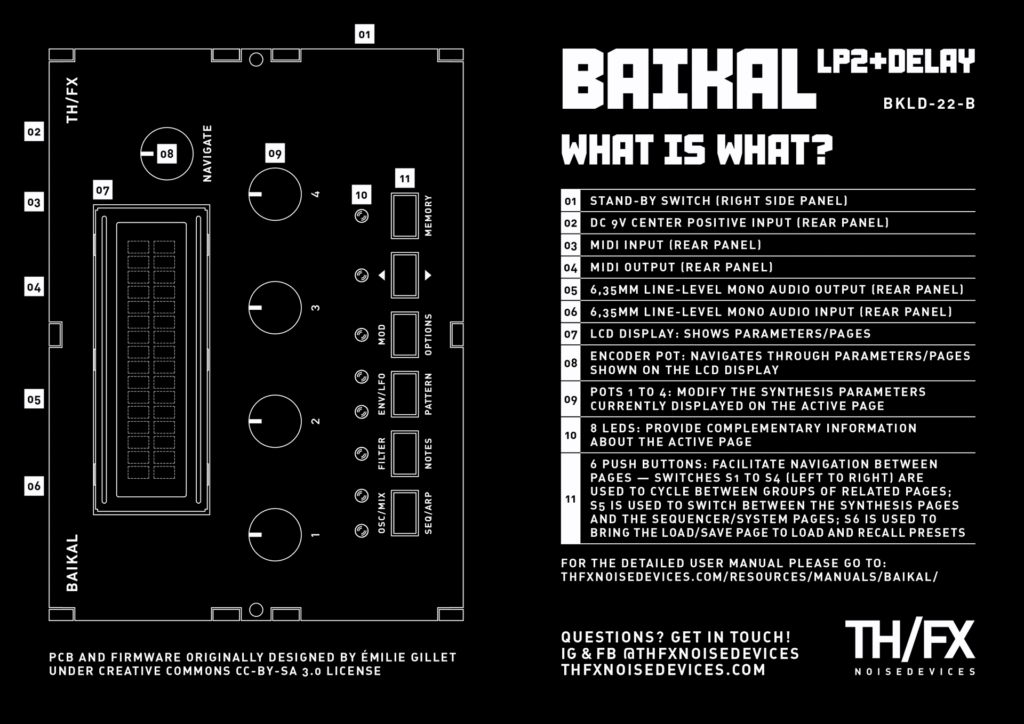

ADDITIONAL BAIKAL SPECS

• acryl housing, glossy black, LxWxH 96x133x44mm
• DC 9V center positive input (rear panel)
• no external power supply unit included
• on/off switch (right side panel)
• Midi input (rear panel)
• Midi output (rear panel)
• 6,35mm Line-level mono audio output (rear panel)
• 6,35mm Line-level mono audio input (rear panel)
• 512kB memory chip
• high quality parts
• full aluminum anodized knobs on every pot
• all electronic parts soldered by hand
• all parts RoHS compliant

See the detailed user manual here.

The TH/FX BAIKAL is based on the Shruthi synthesizer. PCB and firmware originally designed by Émilie Gillet under Creative Commons cc-by-sa 3.0 license.

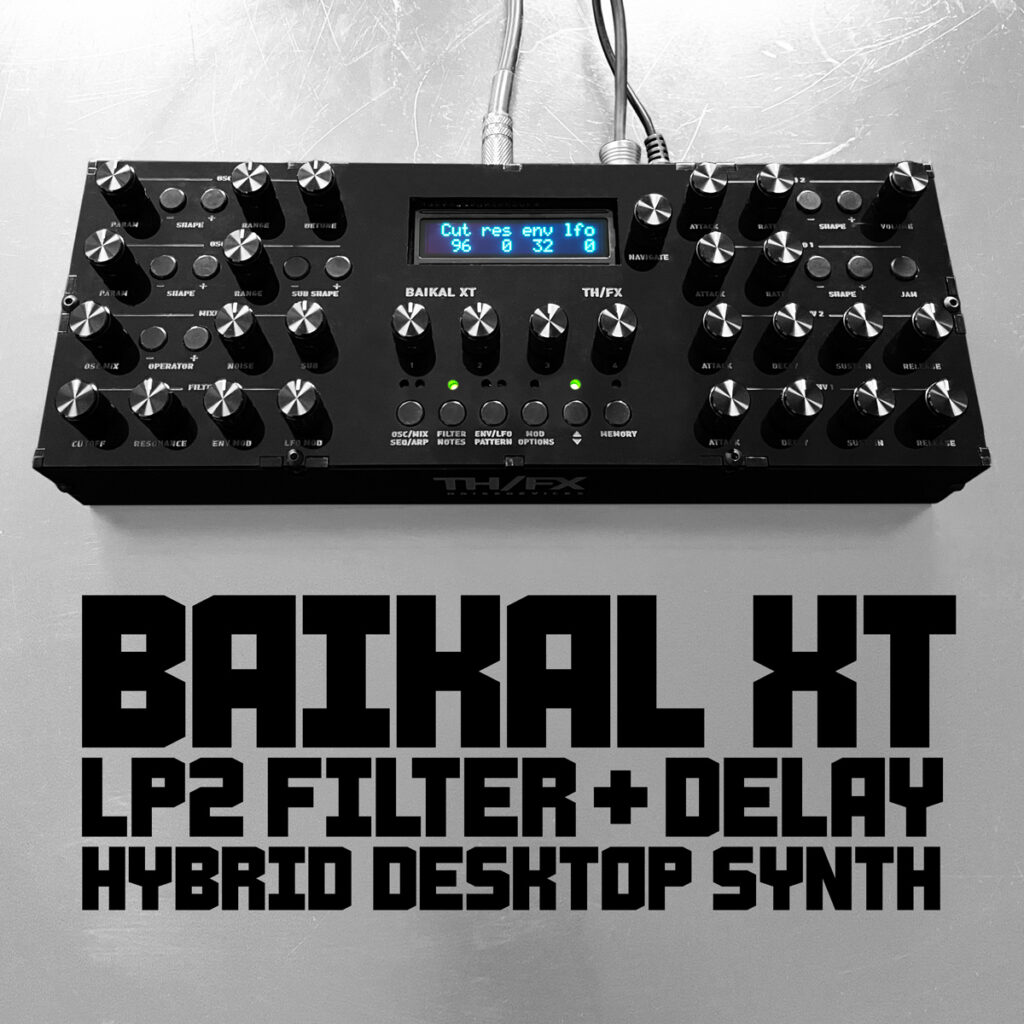

BAIKAL XT

BKXD-22-A / Nov. 15th, 2022 / SOLD OUT
BKLD-23-A / November 8th, 2023 / MADE TO ORDER

The BAIKAL XT is the extended version of the BAIKAL. It is a hybrid monophonic desktop synthesizer that offers the best of both analog and digital worlds.

It is designed in two halves — the main circuit board is all digital, generating various sound sources, mixing and treatment options, envelopes, LFOs, and a 16-step sequencer and arpeggiator. It is equipped with an 2/16 OLED display, an encoder pot to navigate through parameters/pages shown on the display, 4 pots to modify the synthesis parameters, and 6 push buttons to cycle between groups of related pages, to switch between the synthesis pages and the sequencer/system pages, and to load and recall presets. In addition the XT version features 25 pots and 13 push buttons for editing parameters directly.

The all analog LP2 filter plus delay board forms the second half of the BAIKAL XT. It combines a raw OTA-C 2-pole filter with a classic lo-fi delay. It contains the voltage-controlled filter and amplifier, and has the ability to treat external audio.

The TH/FX BAIKAL XT is based on the Shruthi XT synthesizer. PCB and firmware originally designed by Émilie Gillet under Creative Commons cc-by-sa 3.0 license.

Power supply and cables are not included.

Shop link: BAIKAL XT Hybrid Desktop Synthesizer

ADDITIONAL BAIKAL XT SPECS

• acryl housing, glossy black, LxWxH 96x133x44mm
• DC 9V center positive input (rear panel)
• no external power supply unit included
• on/off switch (right side panel)
• Midi input (rear panel)
• Midi output (rear panel)
• 6,35mm Line-level mono audio output (rear panel)
• 6,35mm Line-level mono audio input (rear panel)
• 512kB memory chip
• 2/16 OLED display
• 1 encoder pot
• 4 synthesis parameters pots
• 6 cycle push buttons
• 25 pots for editing parameters directly
• 13 push buttons for editing parameters directly
• high quality parts
• full aluminum anodized knobs on every pot
• all electronic parts soldered by hand
• all parts RoHS compliant

See the Baikal’s detailed user manual here.

The TH/FX BAIKAL XT is based on the Shruthi XT synthesizer. PCB and firmware originally designed by Émilie Gillet under Creative Commons cc-by-sa 3.0 license.

VOXVORTEX

VVRF-22-A / March 25th, 2022 / SOLD OUT
VVRF-22-B / Nov. 3rd, 2022 / SOLD OUT
VVRF-23-A / Dec. 11th, 2023 / SOLD OUT

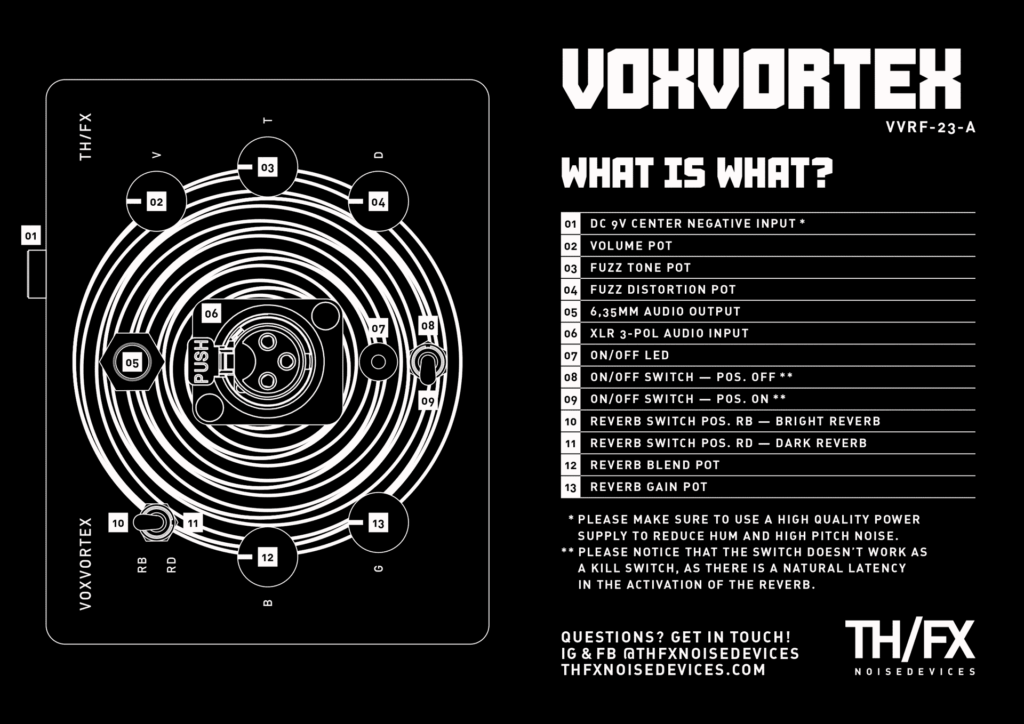

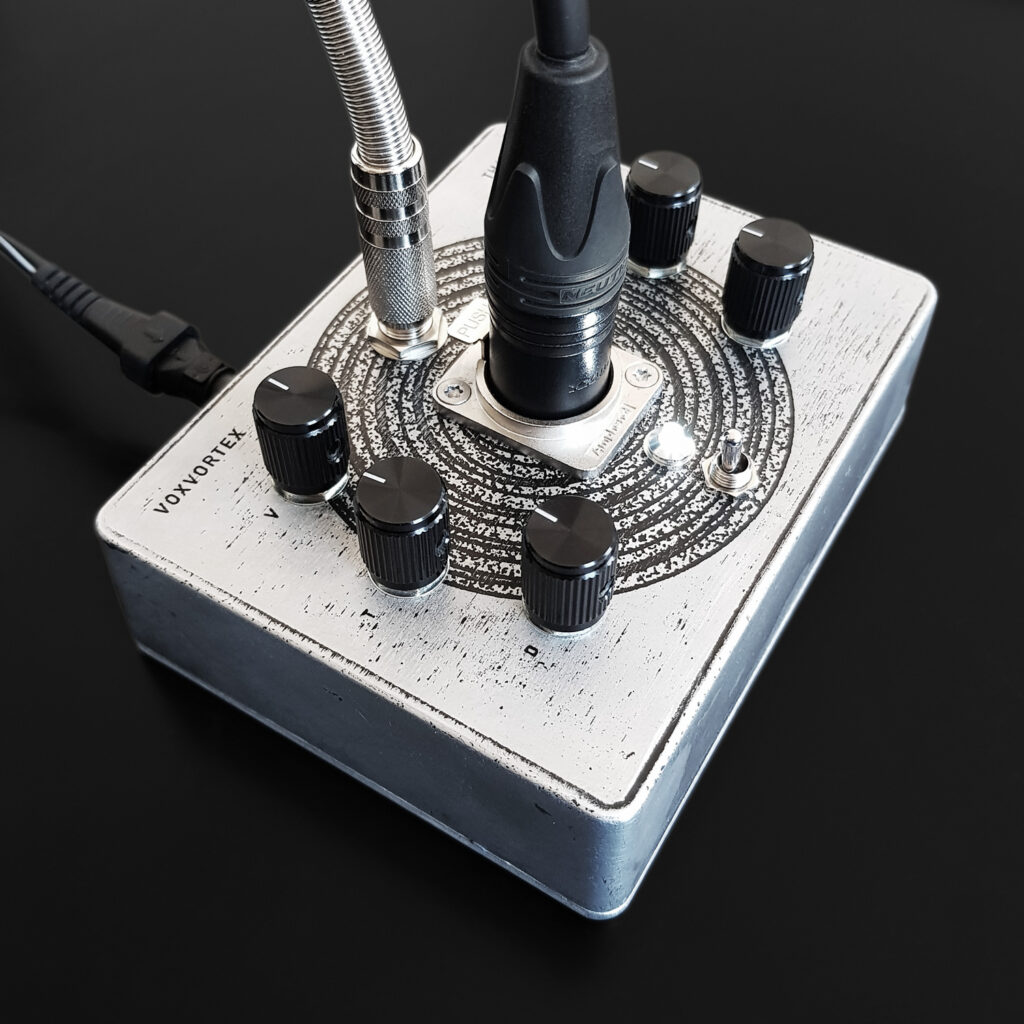

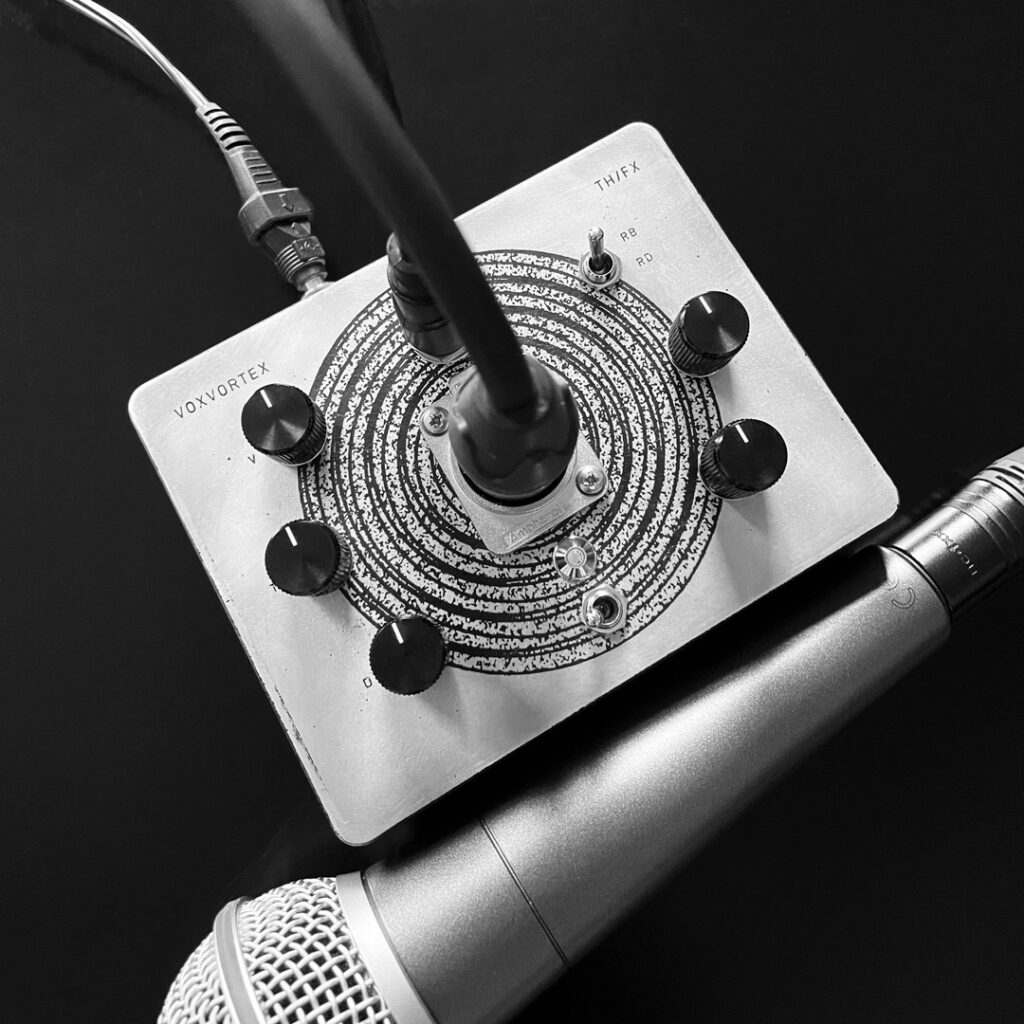

The VOXVORTEX is a vocal noise machine with optional bright or dark reverb going into our own massive SPUTNIK fuzz. At first commissioned by our friends VORARE, we are now offering further builds.

In the words of Eeli, singer and noise maniac of VORARE:

“Commissioning the VOXVORTEX was my first encounter with TH/FX — the wonderful pedal/synth builder duo whose builds I stumbled on by a random chance on some social media platform. A quick glance over what they had done previously was enough for me and a friend of mine to approach them about building us a pedal particularly designed for vocals. We were met with professionalism and enthusiasm unlike anything I had experienced before, and already after our initial discussions, I knew we can expect great things.

The device they proposed to us was the VOXVORTEX, that abides to its name by being a glorious vessel of chaos and annihilation directly lifted from the deepest abyss of conceivable sonics. The pedal utilizes two different reverbs and distortion, all of which are to die for, and provide an immaculate setting for various types of musical realisation. It offers both serene subtlety and a destructive brick wall-esque mayhem, covering the ground of everything in between.

As an extra measure, it can of course be paired with anything with an XLR output, and you can turn into a pedal for any and all settings, whether you wish to record some devastating drum hits, craft some rather interesting field recordings, run a basic synth/guitar/bass through it for some extra depth, or mic the construction site under your bedroom window to at least make something worthwhile out of it.

I am glad that we pulled the device off in the best way possible, I am glad that people have found interest in our mutual mind map/mess enough for them to ask to get one, and I am glad to play a minor part in developing something as wonderful as this device with TH/FX.”

100% handmade, best metal parts, no cheap plastics, unique design, etched enclosure.

Cables and power supply are not included.

Shop link: VOXVORTEX Reverb/Fuzz Edt.

ADDITIONAL VOXVORTEX SPECS

• etched 1590BB enclosure, LxWxH 93x120x33mm
• DC 9V center negative input
• operation only with external power supply unit
• no external power supply unit included
• XLR 3-pol audio input
• 6,35mm audio output
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized knobs on every pot
• built with our own TH/FX PCBs
• all electronic parts soldered by hand
• all parts RoHS compliant

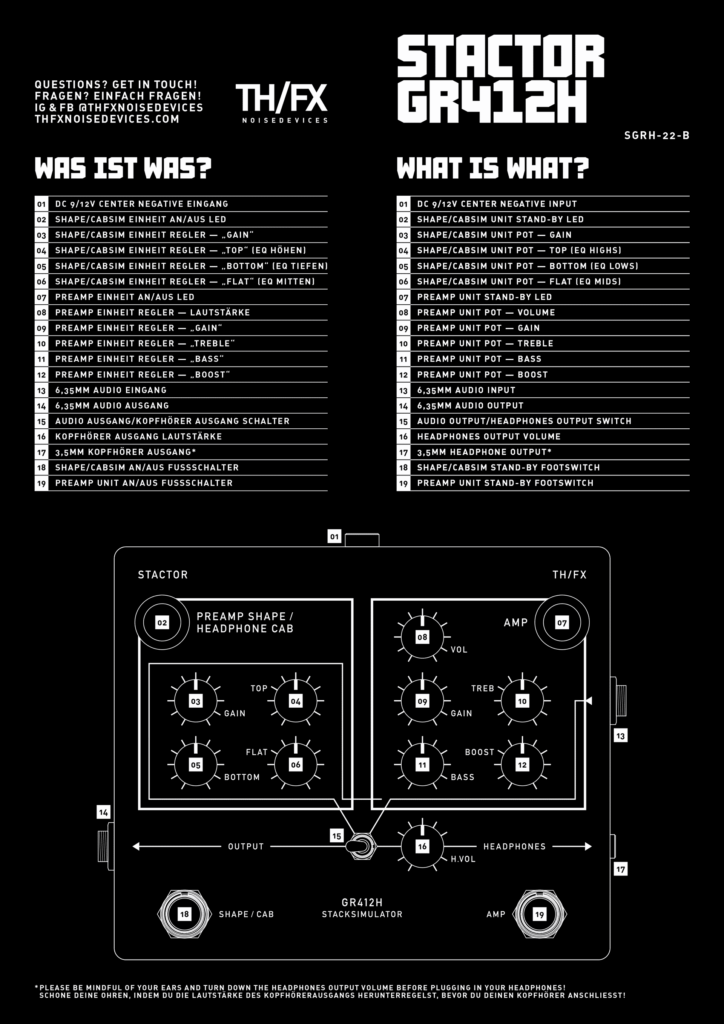

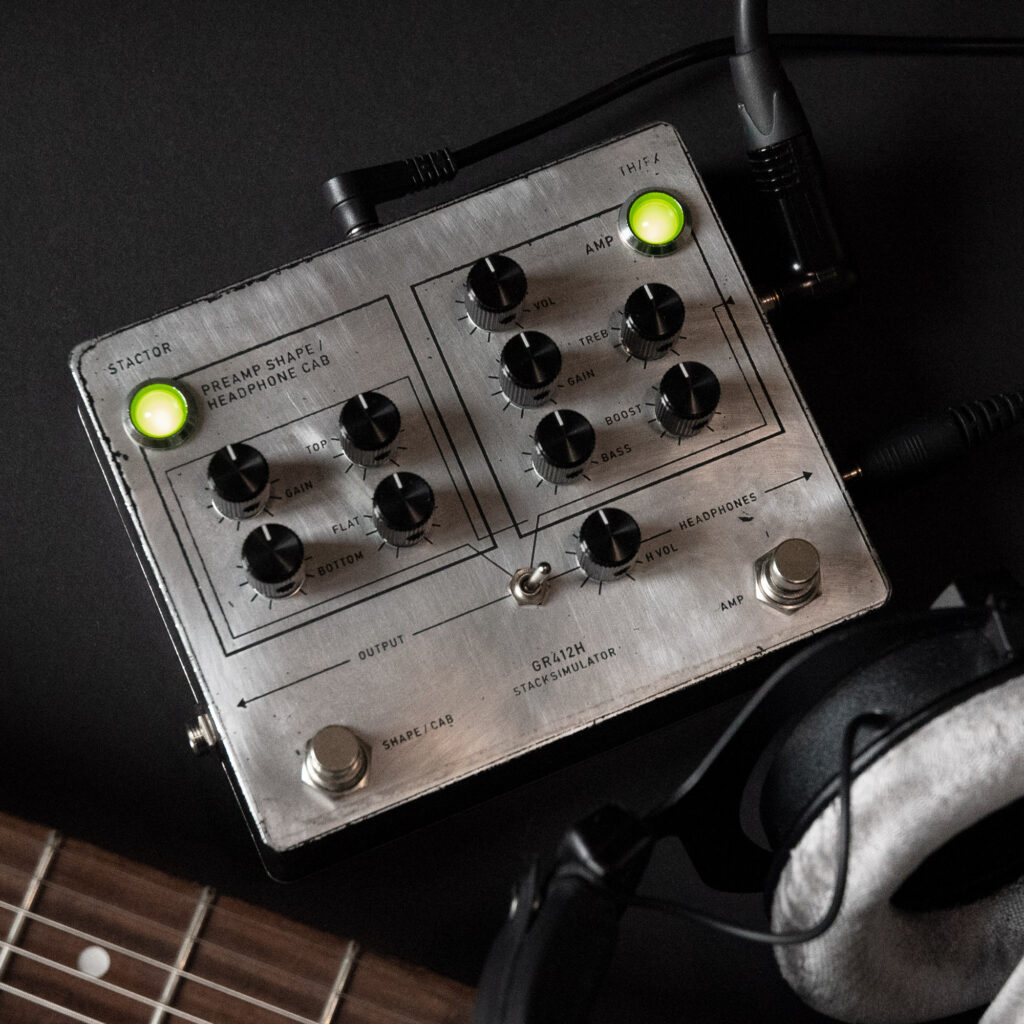

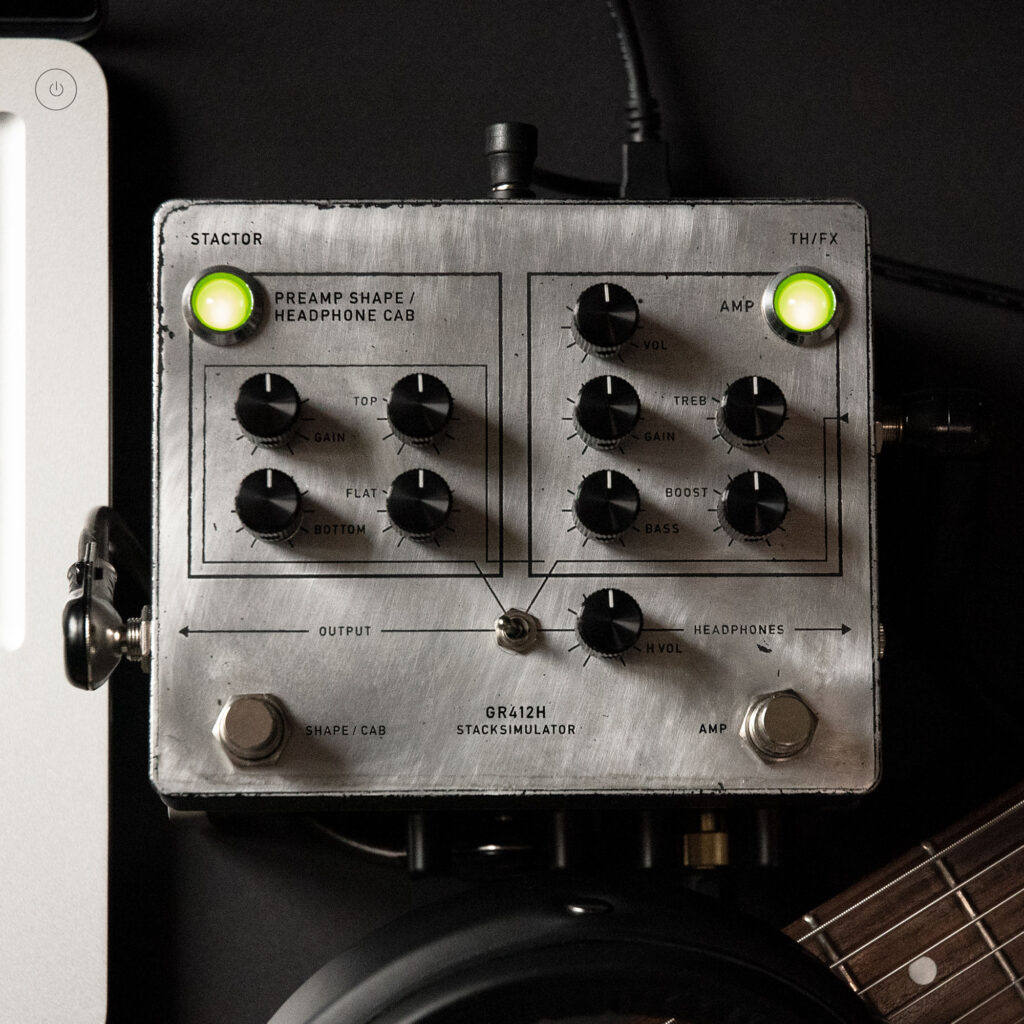

STACTOR GR412H

SGRH-21-A / Dec. 10th, 2021 / SOLD OUT
SGRH-22-A / Jan. 15th, 2022 / SOLD OUT
SGRH-22-B / Feb. 13th, 2022 / SOLD OUT

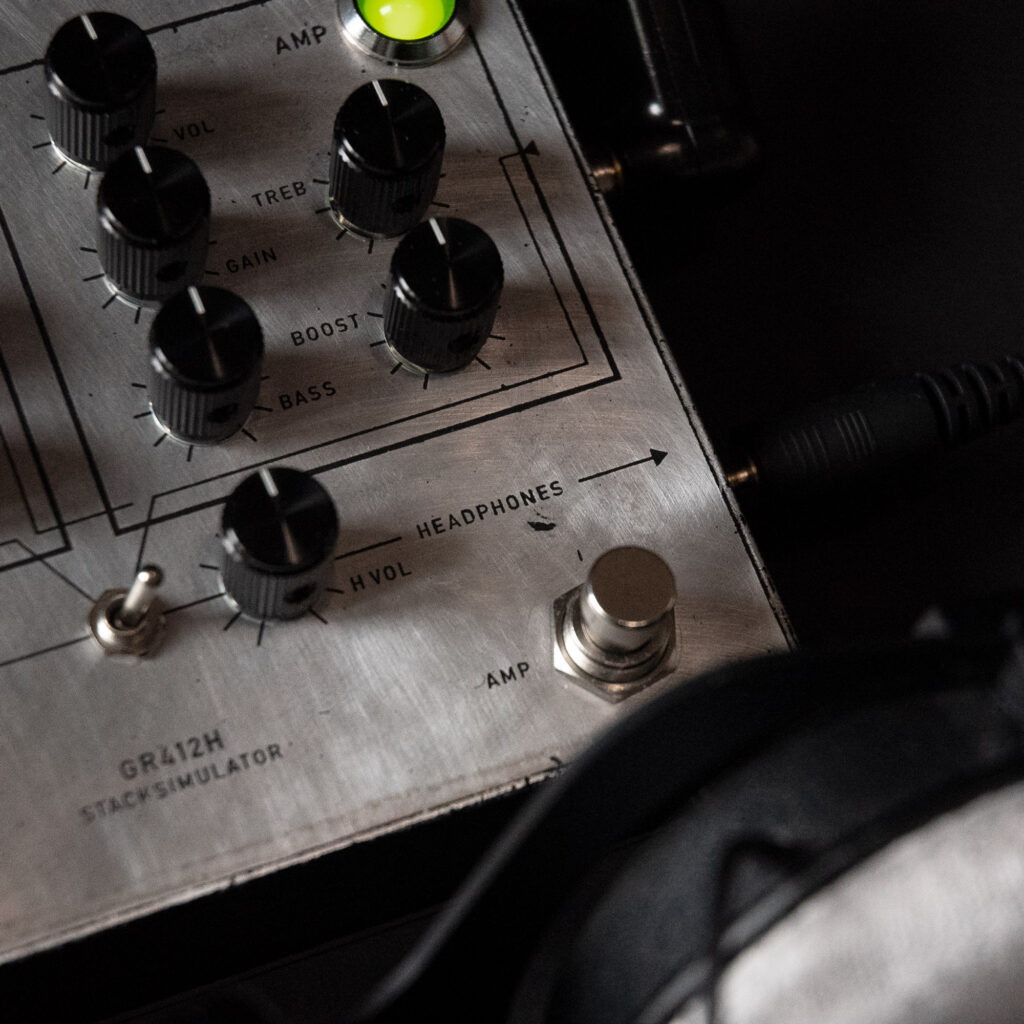

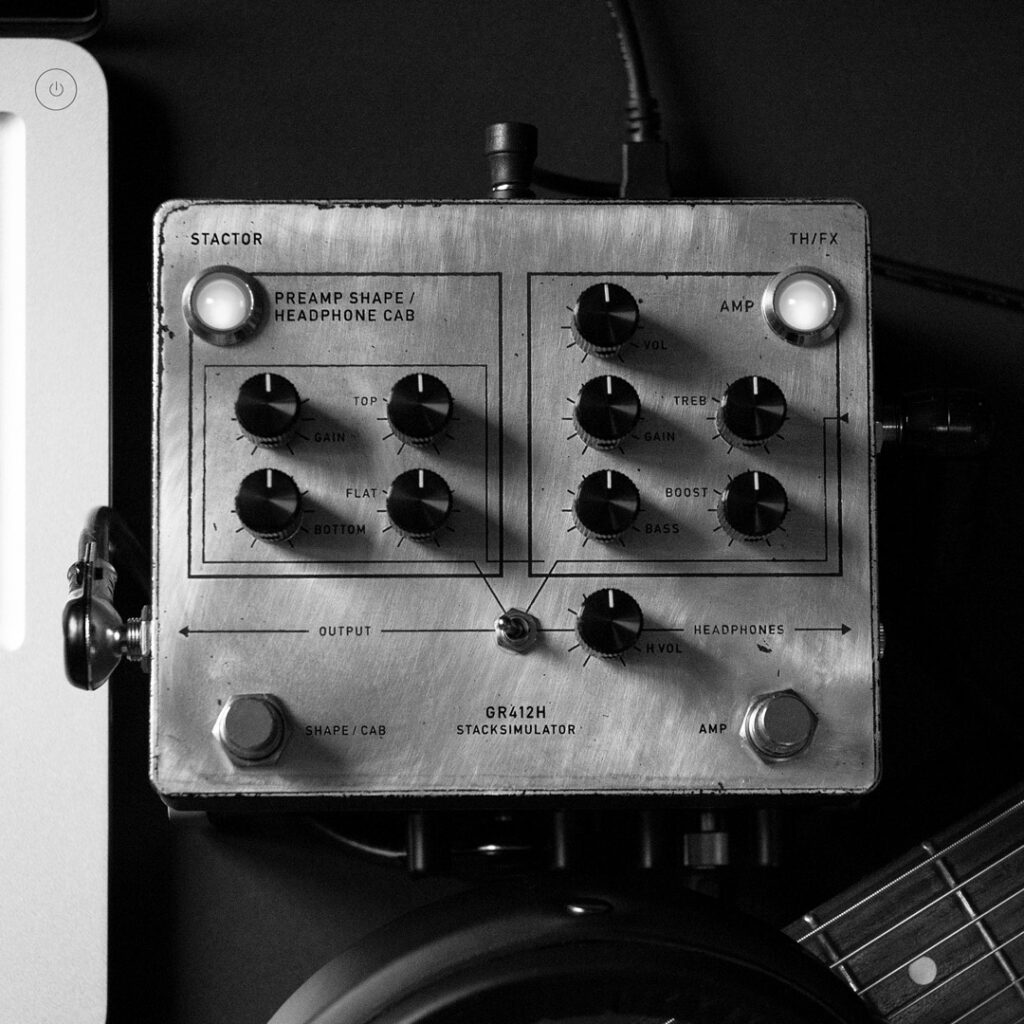

Acts like a stack: THE STACTOR — an analog guitar stack simulator which has the overdrive characteristics of a classic British style doom amp. The shape section can be set variabely so you can achieve the sound of diverse 4×12 cab models.

Use the PreAmp and the shape section combined or the PreAmp alone in combination with your effect chain through your interface to record with your computer. Or as a classic overdrive into your clean amp or straight through your effects loop.

The icing on the cake is the ability to switch the signal directly to your headphones which makes you independent from your interface while jamming.

100% handmade, 100% analog, best metal parts, no cheap plastics, every unit’s unique.

Laptop, interface, guitar, headphones, cables, and power supply are not included.

ADDITIONAL STACTOR SPECS

• etched XX enclosure, LxWxH 120x143x38mm
• DC 9/12V center negative input
• operation only with external power supply unit
• no external power supply unit included
• 6,35mm audio input & output
• 3,5mm headphone output
• big green on/off LEDs
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized knobs on every pot
• built with our own TH/FX PCBs
• all electronic parts soldered by hand
• all parts RoHS compliant

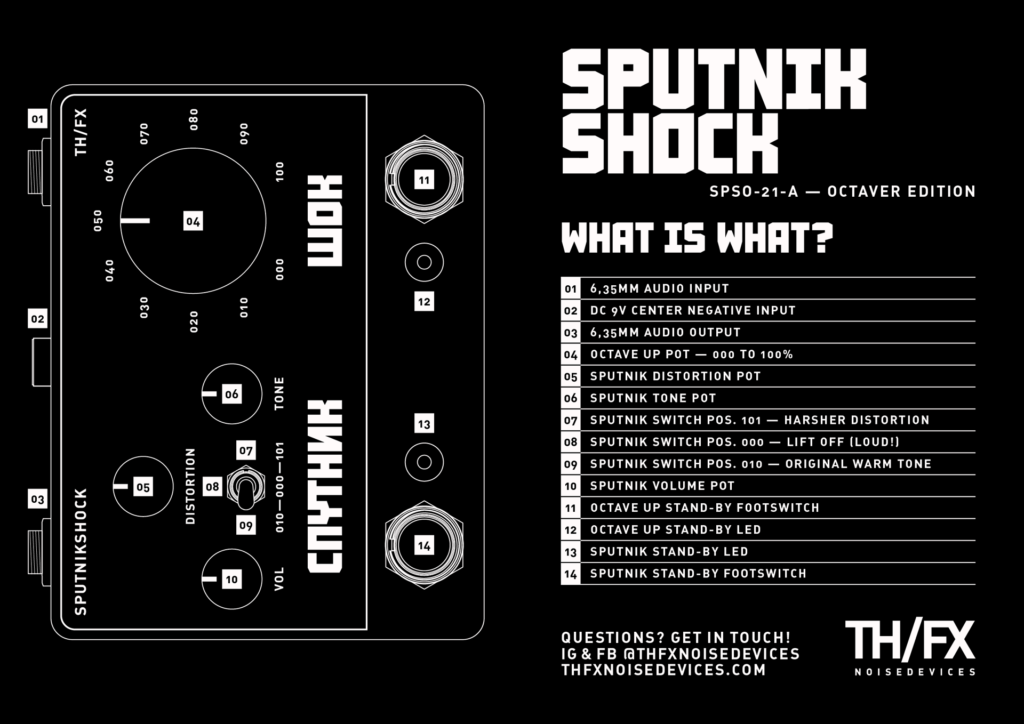

SPUTNIKSHOCK

SPSO-21-A / May 21st, 2021 / SOLD OUT
SPSB-21-A / May 21st, 2021 / SOLD OUT
SPSB-22-A / Sept. 26th, 2022 / SOLD OUT
OUT OF PRODUCTION

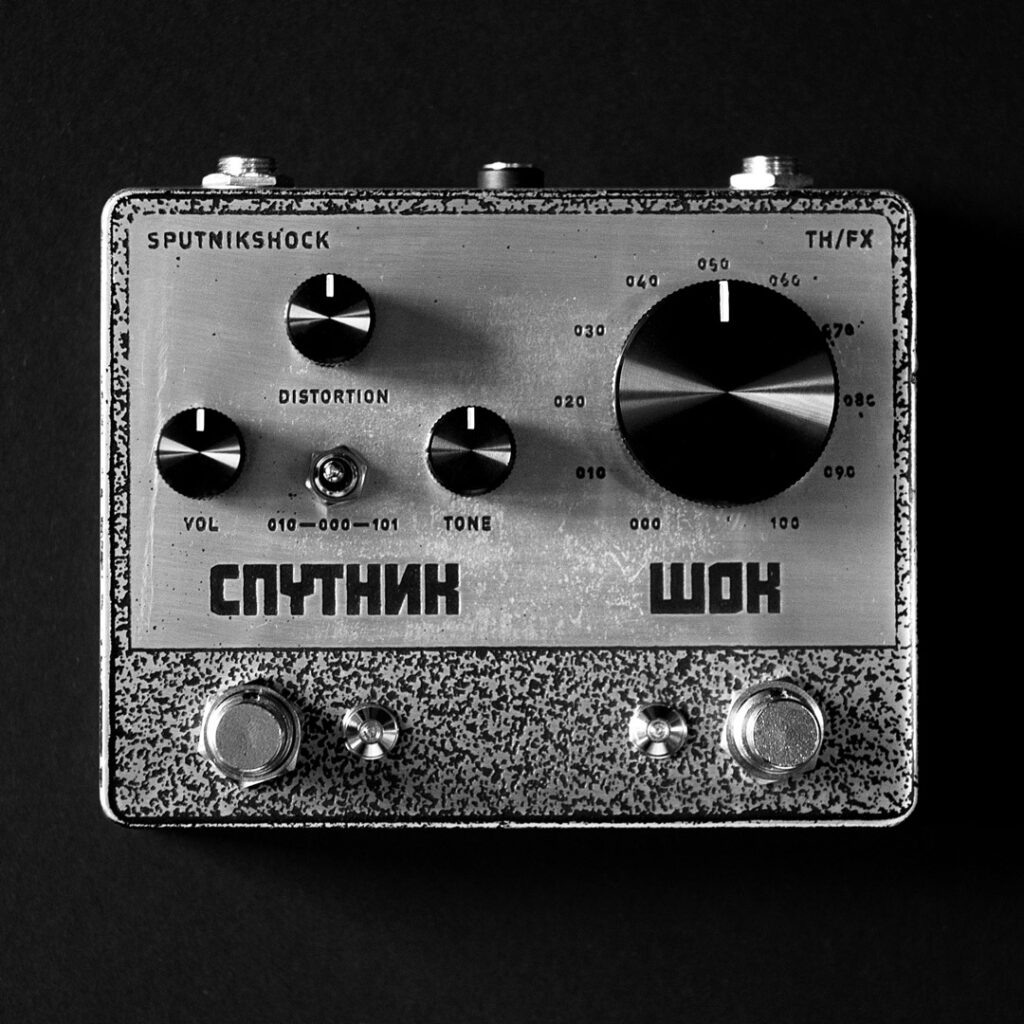

Two effects in one box. SPUTNIK — the closest you can get to the Russian original for all the good, warm, doomy fuzz. Modded to give it more low end, and the ability to change the clipping diodes from silicon (the orginal warm tone), lift off (loud!) and red LEDs (higher, louder, harsher distortion sound).

In combination, choose the SHOCK Booster — a classic clean boost to drive your SPUTNIK even harder on the input. Use it separately as a regular booster for all your other effects or dial it to eleven on single use for some nice overdriven boost.

You can also choose the SHOCK Octaver — add an analog octave up to your fuzzy SPUTNIK sound, the blend knob allows to dial the ocatve in as much as you like. You can even use it without the SPUTNIK to give your setup an extra octave up.

True bypass, built on our own PCBs in an etched enclosure.

ADDITIONAL SPUTNIKSHOCK SPECS

• etched 1590BB enclosure, LxWxH 93x120x33mm
• rear side 9V DC and 6,35mm audio connections
• operation only with external power supply unit
• no external power supply unit included
• red on/off LEDs
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized knobs on every pot
• all parts RoHS compliant

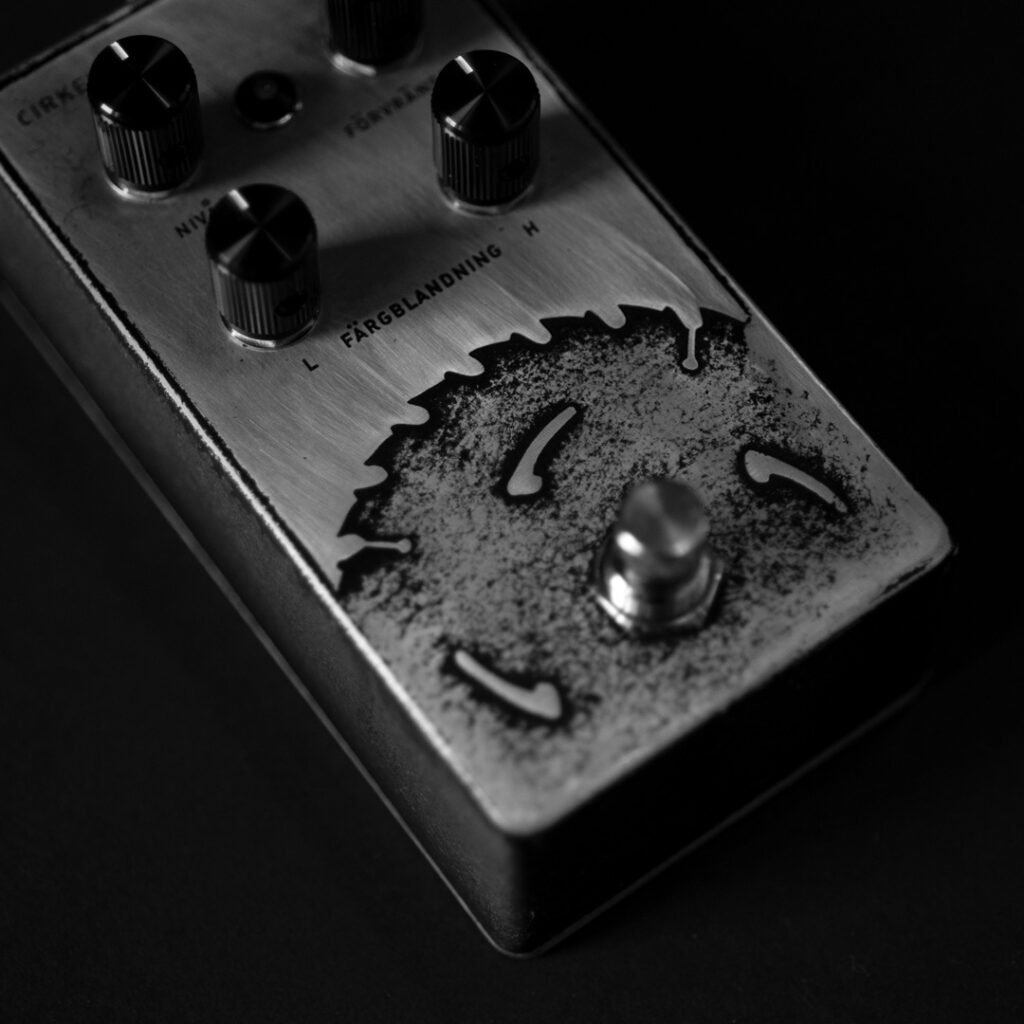

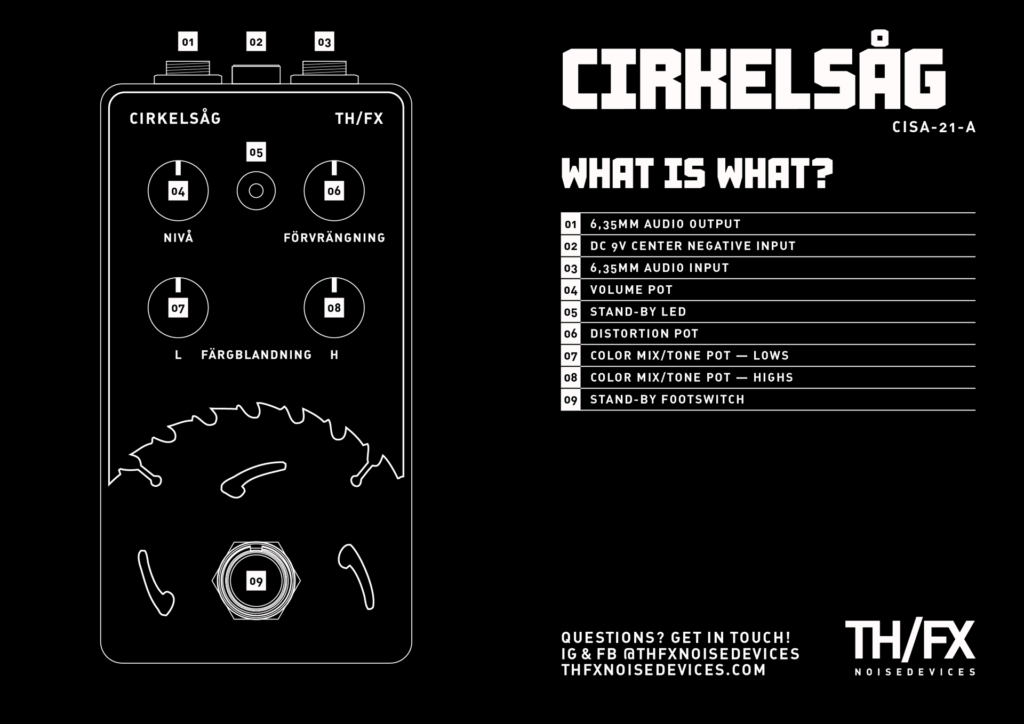

CIRKELSÅG

CISA-21-A / May 21st, 2021 / SOLD OUT
OUT OF PRODUCTION

We tried to get as close as possible to the orginal distortion classic you all know and love. Using NOS transistors and three ICs to give it the gnarly sound. Four controls — volume, lows, highs, and distortion.

True bypass, built on vero in an etched enclosure.

In this edition strictly limited to three pieces.

ADDITIONAL CIRKELSÅG SPECS

• etched 125B enclosure, LxWxH 120x65x39mm
• rear side 9V DC and 6,35mm audio connections
• operation only with external power supply unit
• no external power supply unit included
• yellow on/off LED
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized knobs on every pot

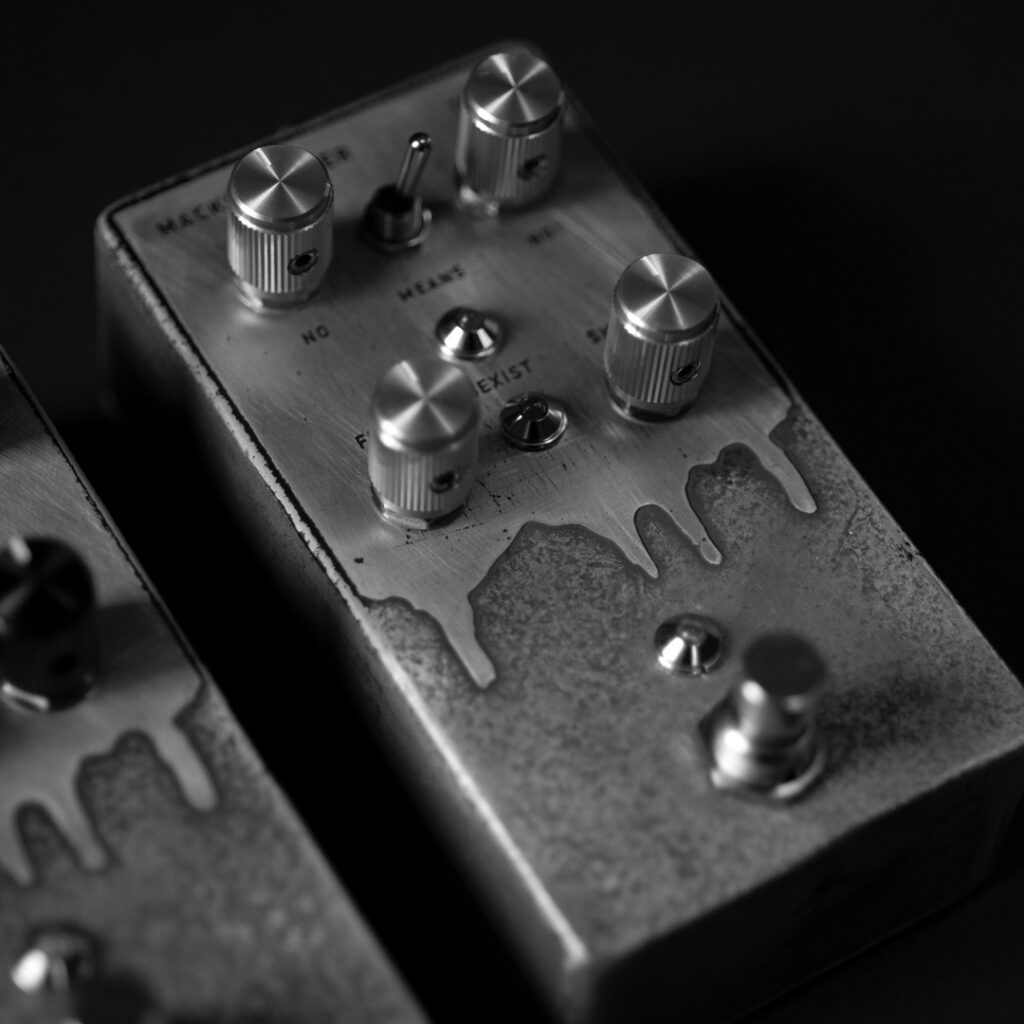

MACKERMELTER

MAME-21-A / May 21st, 2021 / SOLD OUT
OUT OF PRODUCTION

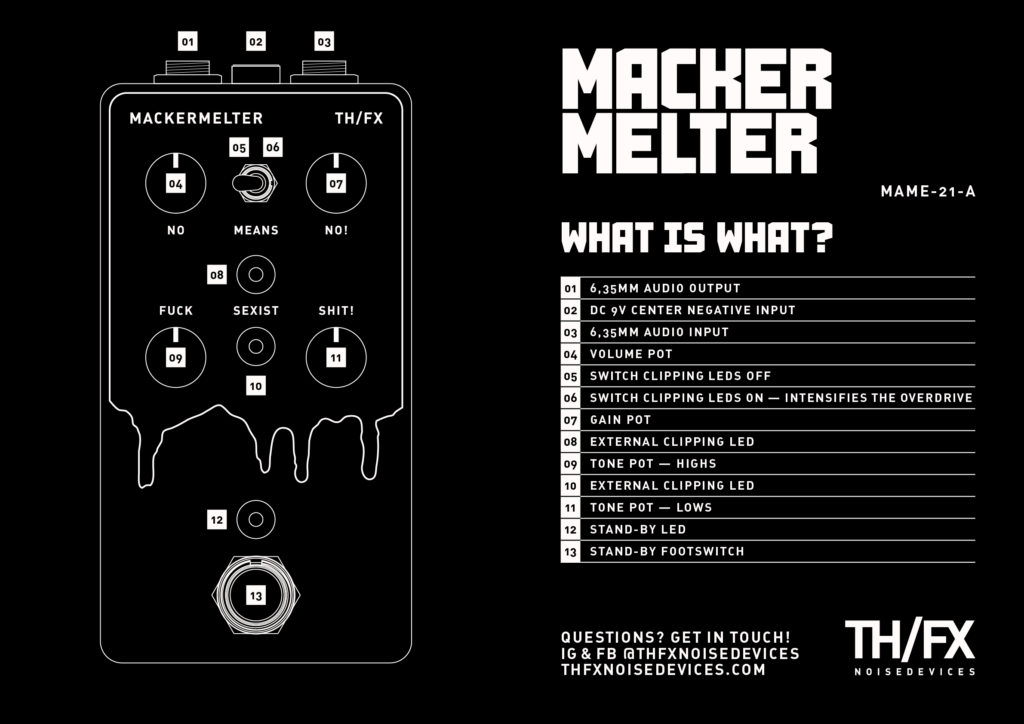

Our friend Moonn Electronics asked us to do something cool with his PATRIARCHY MELTER PCB which is a clone of a merch Overdrive effect pedal of a disgusting sexist scum band that shall not be named here.

So this is the result — the MACKERMELTER is strictly limited to three pieces in this edition and the majority of the income will be donated to women’s shelters in Hamburg — no means no, fuck sexist shit, smash patriarchy!

True bypass, built on the PATRIARCHY MELTER PCB in an etched enclosure.

ADDITIONAL MACKERMELTER SPECS

• etched 125B enclosure, LxWxH 120x65x39mm
• rear side 9V DC and 6,35mm audio connections
• operation only with external power supply unit
• no external power supply unit included
• two red external LEDs for some visual clipping effect
• white on/off LED
• high quality parts, like WIMA capacitors and Lumberg jacks made in Germany
• full aluminum anodized knobs on every pot
• all parts RoHS compliant
